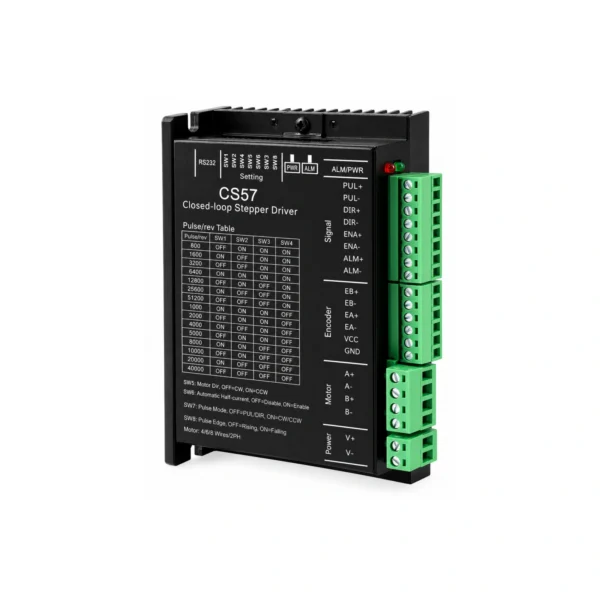

CS57 Closed-Loop Stepper Motor Driver
Compact Closed-Loop Stepper Motor Driver for Precise Motion Control
Compact closed-loop stepper motor driver with encoder feedback, adjustable microstepping and up to 200 kHz pulse frequency for stable motion control.
Key Specifications
- Continuous output current up to 5.6 A
- DC input voltage: 24–80 Vdc
- Pulse frequency up to 200 kHz
- Multiple microstepping settings up to 51,200 pulses/revolution
- Supports 4-, 6- and 8-wire two-phase stepper motors
Overview
The CS57 Closed-Loop Stepper Motor Driver is a digital stepper motor driver designed for motion-control applications that require stable operation, precise positioning and encoder feedback.
The driver uses a dedicated 32-bit DSP control platform together with built-in microstepping technology and precise current control. Multiple current and microstepping settings allow the CS57 to be configured for different stepper motor and motion-control requirements.
With a maximum pulse frequency of 200 kHz, encoder feedback interfaces and protection against conditions such as overcurrent, overvoltage and excessive tracking error, the CS57 provides a practical solution for small and medium-sized automation equipment and instruments.
Key Features
Closed-Loop Encoder Feedback
The CS57 incorporates encoder feedback interfaces for monitoring motor operation and supporting closed-loop stepper motor control.
High-Speed Pulse Response
With a maximum pulse frequency of 200 kHz, the driver can be integrated into motion-control systems requiring high-speed command input.
Flexible Microstepping Settings
The driver provides multiple selectable microstepping settings, allowing the motion resolution to be matched to different application requirements.
Precise Current Control
Motor current can be configured according to the connected motor, helping achieve stable operation while controlling motor heating.
32-Bit DSP Control
A dedicated 32-bit DSP control platform provides digital processing for stepper motor operation and motion control.
Multiple Motor Configurations
The CS57 supports compatible 4-, 6- and 8-wire two-phase stepper motors, providing flexibility for different motor connection configurations.
Integrated Fault Protection
The driver provides protection functions for conditions including overcurrent, overvoltage and excessive tracking error.
Compact Automation Integration
The CS57’s compact driver format makes it suitable for integration into small and medium-sized automation equipment, instruments and other motion-control systems.
Applications
The CS57 is suitable for small and medium-sized automation equipment and instruments requiring closed-loop stepper motor control.
Typical applications include:
- CNC machines
- Engraving machines
- Marking machines
- Cutting equipment
- Wire stripping machines
- Plotters
- Laser equipment
- Automatic assembly equipment
- Automated positioning systems
- Motion-control instruments
It is particularly suitable where closed-loop feedback, high-speed pulse response and stable stepper motor operation are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Closed-Loop Stepper Motor Driver |
| Control Type | Digital Closed-Loop Control |
| Continuous Output Current | 0–5.6 A |
| Input Power Voltage | +24 to +80 Vdc |
| Logic Input Current | 7–20 mA |
| Typical Logic Input Current | 10 mA |
| Maximum Pulse Frequency | 200 kHz |
| Microstepping | Multiple selectable settings |
| Motor Type | Two-Phase Stepper Motor |
| Motor Connection | 4-, 6- and 8-Wire |
| Feedback | Encoder |
| Insulation Resistance | ≥500 MΩ |
| Protection | Overcurrent, Overvoltage, Tracking Error |
Encoder & Control Interfaces
The CS57 provides dedicated interfaces for motion-control signals, encoder feedback and motor connection.
| Terminal | Function |
|---|---|
| PUL+ / PUL− | Pulse signal input |
| DIR+ / DIR− | Direction signal input |
| ENA+ / ENA− | Enable signal input |
| ALM+ / ALM− | Alarm output |
| PEND+ / PEND− | Position-related output |
| EA+ / EA− | Encoder A-phase input |
| EB+ / EB− | Encoder B-phase input |
| VCC | Encoder power supply |
| GND | Encoder signal ground |
| A+ / A− | Motor phase A |
| B+ / B− | Motor phase B |
| V+ / V− | DC power supply |
Control Signal
The CS57 accepts external pulse and direction signals for motion control, with an enable interface available for controlling driver operation.
Encoder Feedback
Encoder A/B phase interfaces provide feedback from the motor encoder for closed-loop operation and tracking-error monitoring.
Microstepping Settings
The CS57 uses switch-based configuration for microstepping. The supplied documentation provides multiple selectable pulse/revolution settings.
| Microstepping | SW1 | SW2 | SW3 | SW4 |
|---|---|---|---|---|
| 800 | ON | OFF | ON | OFF |
| 1600 | OFF | ON | ON | OFF |
| 3200 | ON | ON | ON | OFF |
| 6400 | OFF | OFF | ON | OFF |
| 12800 | ON | OFF | ON | ON |
| 25600 | OFF | ON | ON | ON |
| 51200 | ON | ON | ON | ON |
| 1000 | ON | OFF | OFF | OFF |
| 2000 | OFF | ON | OFF | OFF |
| 4000 | ON | ON | OFF | OFF |
| 5000 | OFF | OFF | OFF | OFF |
| 8000 | ON | OFF | OFF | ON |
| 10000 | OFF | ON | OFF | ON |
| 20000 | ON | ON | OFF | ON |
| 40000 | OFF | OFF | OFF | ON |
Note: The switch combinations above should be verified against the supplied driver configuration table before commissioning.
Motor Current Settings
The CS57 provides selectable motor current settings through the driver switches.
The supplied configuration information shows selectable current values from approximately 1.0 A to 5.0 A, allowing the driver to be matched to different motor requirements.
| Setting | Current |
|---|---|
| Selectable motor current | Approx. 1.0–5.0 A |
For the exact switch combination corresponding to each current level, refer to the current-setting table supplied with the driver.
LED Status & Fault Indication
The CS57 provides LED status indication for monitoring driver operation and identifying abnormal conditions.
| LED Indication | Driver Status |
|---|---|
| Green, continuously on | Driver operating normally |
| 1 red flash | Overcurrent / short circuit |
| 2 red flashes | Motor current input overvoltage |
| 3 red flashes | Motor current input undervoltage |
| 4 red flashes | Internal overvoltage |
| 5 red flashes | Motor phase open circuit |
| 6 red flashes | Encoder signal error |
| 7 red flashes | Excessive tracking error |
This indication system allows the operator or maintenance personnel to identify common driver faults without relying only on external monitoring equipment.
Protection Functions
The CS57 incorporates protection functions designed to improve driver reliability during operation.
Overcurrent Protection
Helps protect the driver and motor system when excessive current or short-circuit conditions occur.
Overvoltage Protection
Provides protection against abnormal voltage conditions affecting the driver.
Tracking Error Protection
Encoder feedback allows the driver to detect excessive tracking error during closed-loop operation.
Motor Phase Detection
The driver can indicate motor phase-related faults through its LED status indication.
Encoder Signal Monitoring
Encoder-related faults can also be indicated through the driver status LEDs.

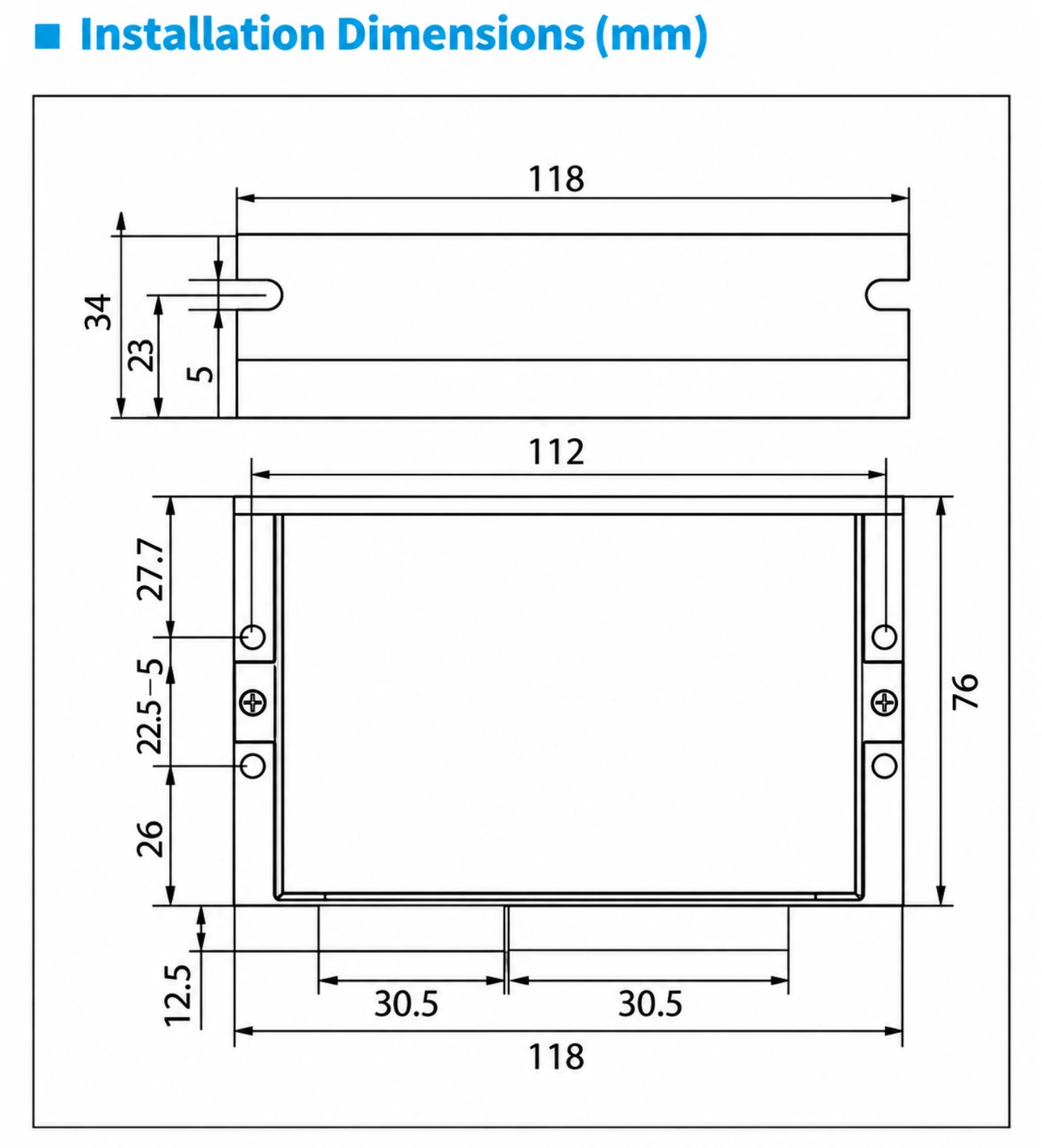

Installation Dimensions
For mechanical integration, refer to the CS57 installation drawing to confirm the mounting dimensions, mounting-hole positions and overall driver dimensions before installation.
The supplied drawing indicates an overall mounting footprint of approximately:
Protection & Status Indication
The CS86 includes LED status indication for monitoring driver operating conditions and fault states.
The documented LED indications cover conditions including:
- Normal driver operation
- Overcurrent or short circuit
- Excessive input current
- Low input current
- Internal voltage fault
- Open motor phase
- Encoder fault
- Tracking error exceeding the allowable limit
This status indication helps users identify abnormal operating conditions during system commissioning and maintenance.
Why Choose the CS57 Closed-Loop Stepper Motor Driver?
Encoder-Based Feedback
The CS57 combines stepper motor control with encoder feedback for applications requiring closed-loop operation and tracking-error monitoring.
High-Speed Motion Input
A pulse response frequency of up to 200 kHz supports fast command signals in automated motion-control systems.
Detailed Parameter Configuration
Multiple current and microstepping settings provide flexibility when matching the driver with different motors and motion requirements.
Built-In Fault Diagnosis
LED status indication helps identify overcurrent, overvoltage, motor phase, encoder and tracking-error conditions during operation.
Flexible Motor Compatibility
Support for 4-, 6- and 8-wire two-phase stepper motors makes the CS57 adaptable to different motor configurations.
FAQ
1. Does the CS57 require an encoder?
A: The CS57 is designed for closed-loop operation and provides dedicated encoder interfaces. The encoder configuration should be matched to the selected motor.
2. What microstepping settings are available?
A: The supplied configuration table provides multiple settings ranging from 800 to 51,200 pulses/revolution, as well as additional settings including 1,000 to 40,000 pulses/revolution.
3. What motors can the CS57 drive?
A: The CS57 supports compatible 4-, 6- and 8-wire two-phase stepper motors.
4. How can I identify a CS57 driver fault?
A: The driver uses red LED flash codes to indicate different fault conditions, including overcurrent, overvoltage, motor phase faults, encoder signal errors and excessive tracking error.
