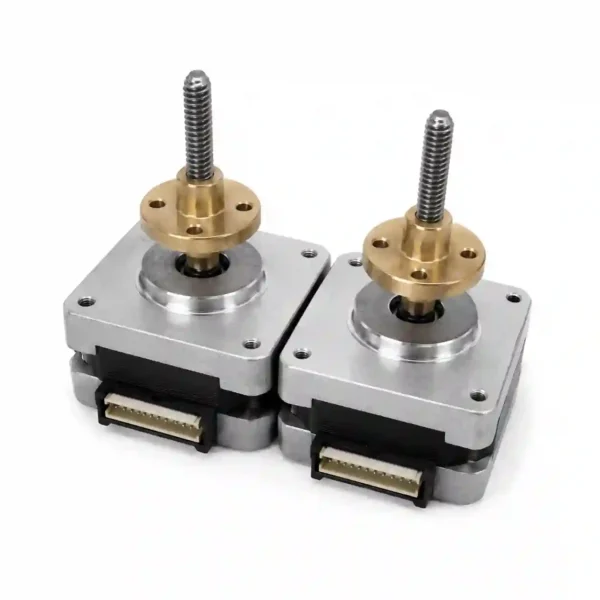

39 Series Hybrid Stepper Motor

Overview

The 39 Series Hybrid Stepper Motor is compact two-phase stepper motors designed for equipment requiring controlled rotary motion, reliable positioning, and a compact motor footprint.

With a standard 1.8° step angle, the series provides 200 full steps per revolution for controlled incremental movement. The available models cover different current, phase resistance, inductance, holding torque, motor mass, and motor length requirements, allowing the motor to be selected according to the electrical and mechanical requirements of the application.

The 39 Series features a square 39.2 mm maximum motor frame dimension with a compact body configuration and front mounting arrangement. Its available configurations are suited to equipment where motor size, mounting dimensions, and motion-control requirements need to be considered together.

Key Features

• Step Angle　-　1.8°
• Number of Phase　-　2-phase
• Step Angle Tolerance　-　±5%
• Maximum Temperature　-　80°C Max
• Ambient Temperature　-　-20°C to +50°C
• Insulation Resistance　-　100 MΩ min. @ 500 VDC
• Dielectric Strength　-　500 V AC, 1 minute
• Resistance Tolerance　-　±10%
• Inductance Tolerance　-　±20%

Applications

The 39 Series is suitable for compact automated equipment where controlled rotary motion, positioning accuracy, and mechanical mounting dimensions need to be considered together. Its two-phase configuration and compact square-frame design make it suitable for a range of electromechanical motion-control applications.

Technical Specifications

The 39 Series hybrid stepper motor is available in compact two-phase configurations for different motion-control requirements. The specifications below summarize the main operating characteristics and electrical parameters of the available models.

Model	Step Angle	Number of Phase	Current / Phase (A)	Resistance / Phase (Ω)	Inductance / Phase (mH)	Holding Torque (N·m)	Rotor Inertia (g·cm²)	Motor Mass (kg)	Motor Length (mm)
39HJB420-0600	1.8°	2	0.50	4.9	4.0	0.065	—	0.130	20
39HJA425-2000	1.8°	2	0.46	26	30	0.13	—	0.145	25

Dimensions & Wiring

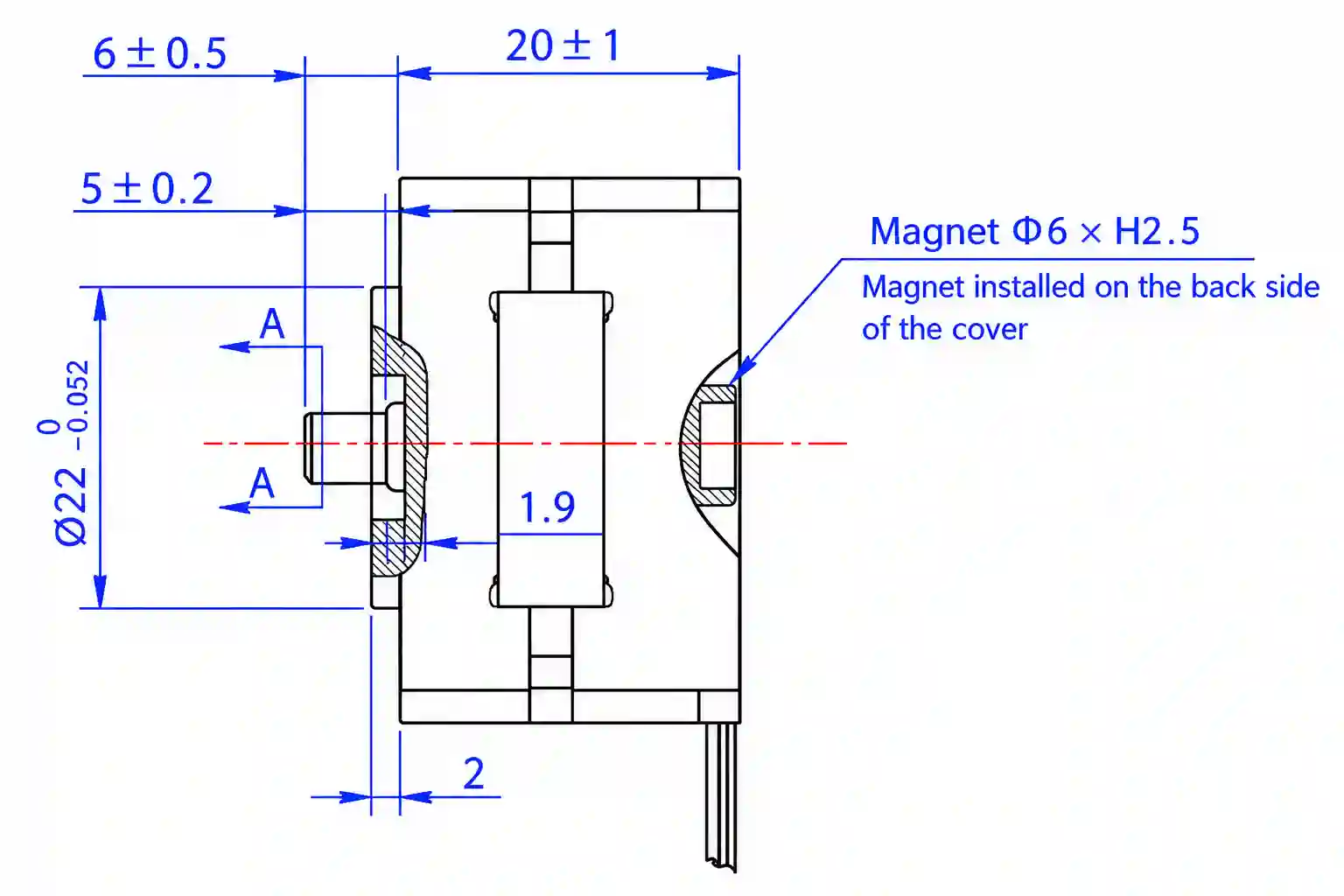

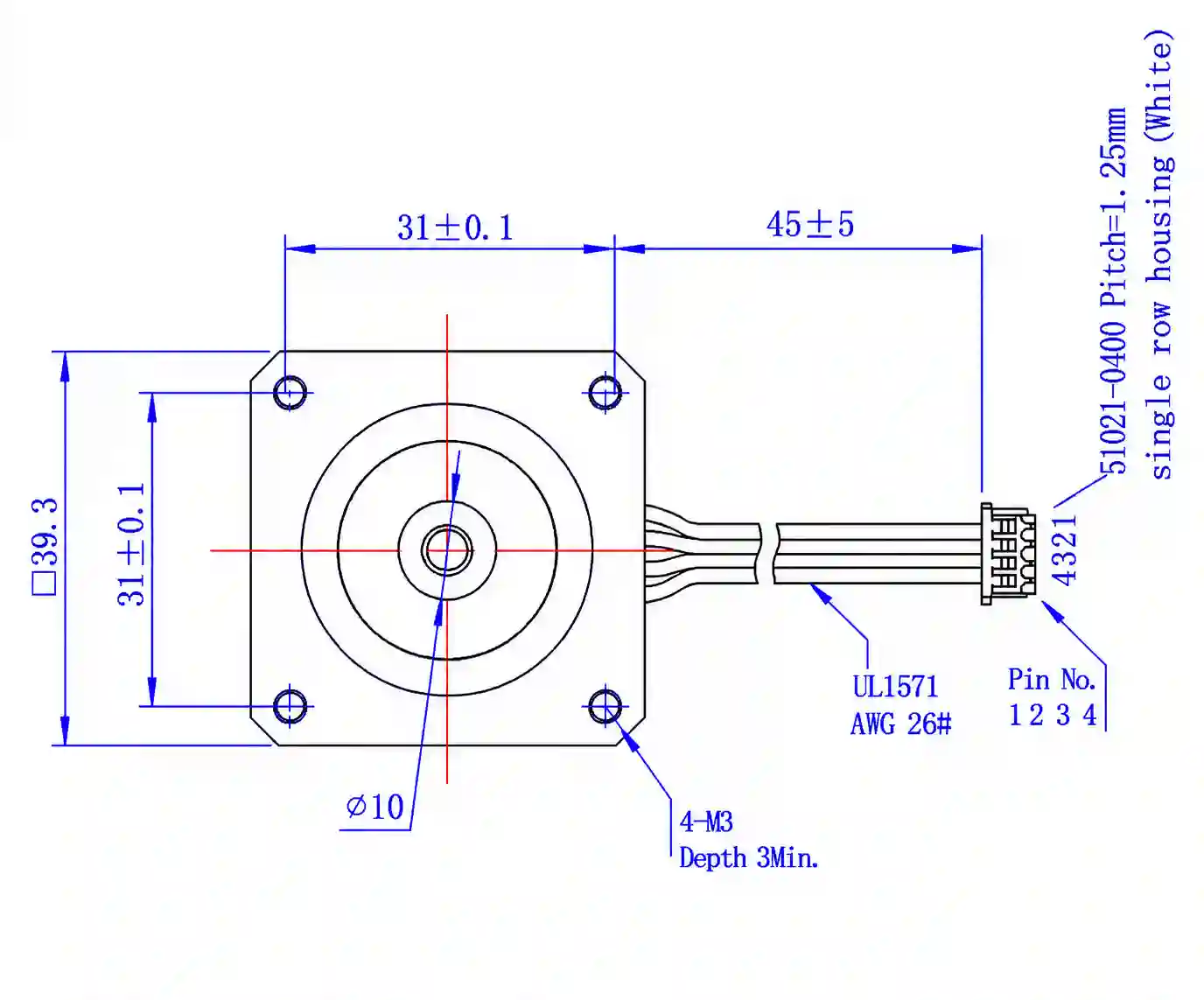

Refer to the dimensional drawings and wiring information below when selecting and integrating the 39 Series into your equipment. The drawings provide the key mounting, shaft, overall dimensions, and wiring connection information required for mechanical and electrical integration.

Torque-Speed Characteristics

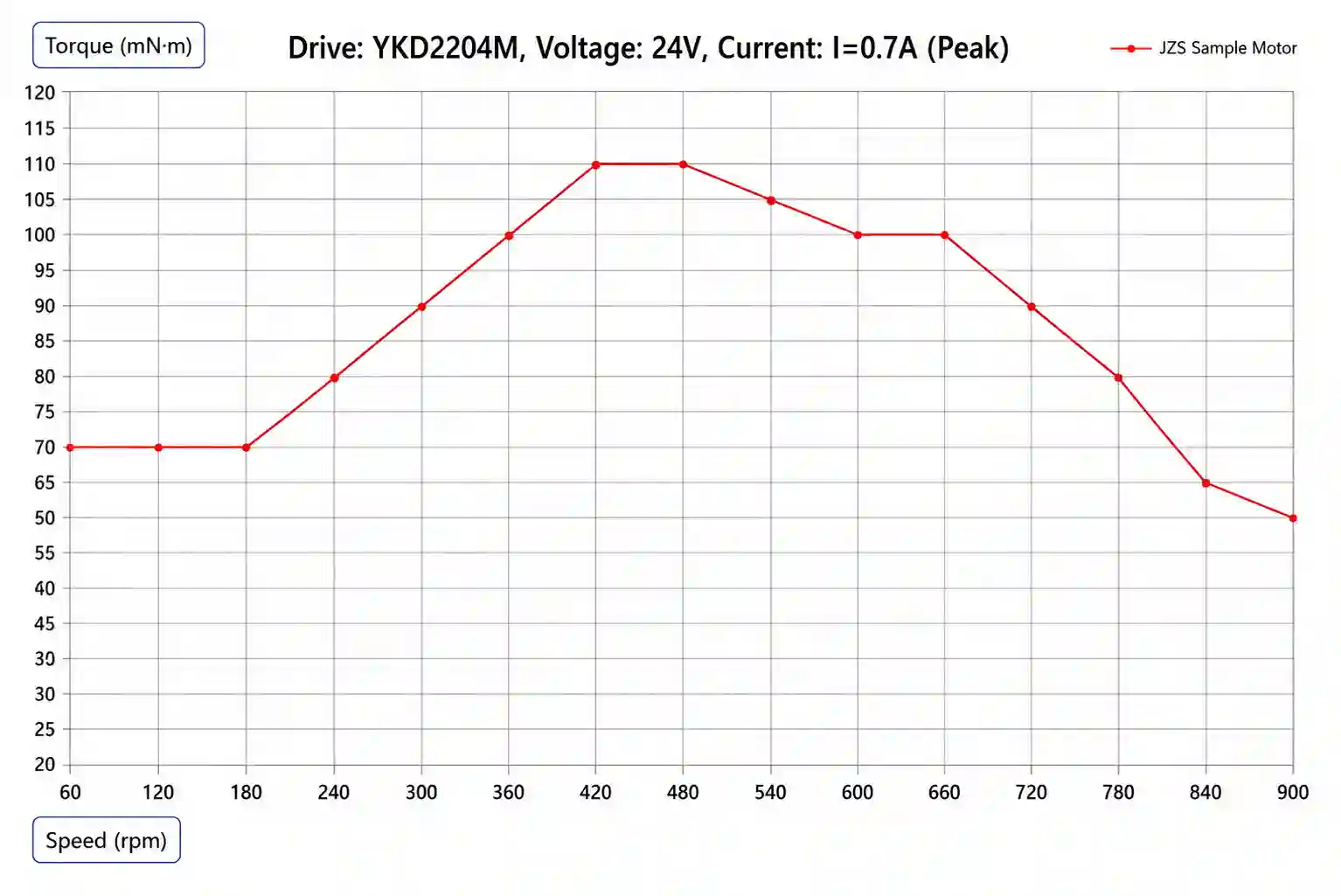

The torque-speed curve below shows the representative performance of a 39 Series hybrid stepper motor under the specified test conditions, with a 24 V supply and 0.7 A peak current.

The curve illustrates the relationship between motor speed and available torque under the tested drive conditions. Actual performance may vary depending on the motor model, drive, supply voltage, current, and operating conditions.

39 Series Torque-Speed Characteristics — Representative test data for reference. Please contact us for detailed performance data for a specific motor model.

FAQ

1. What is the step angle of the 39 Series Hybrid Stepper Motors?

A: The 39 Series uses a standard 1.8° step angle, providing 200 full steps per revolution for controlled incremental motion.

2. What phase configuration is available for the 39 Series?

A: The 39 Series models listed in the available specifications use a 2-phase configuration. Different current, resistance, inductance, holding torque, and motor length options are available.

3. What are the operating temperature specifications?

A: The 39 Series has a maximum motor temperature of 80°C and an ambient operating temperature range of -20°C to +50°C. The specified insulation resistance is 100 MΩ minimum at 500 VDC.
